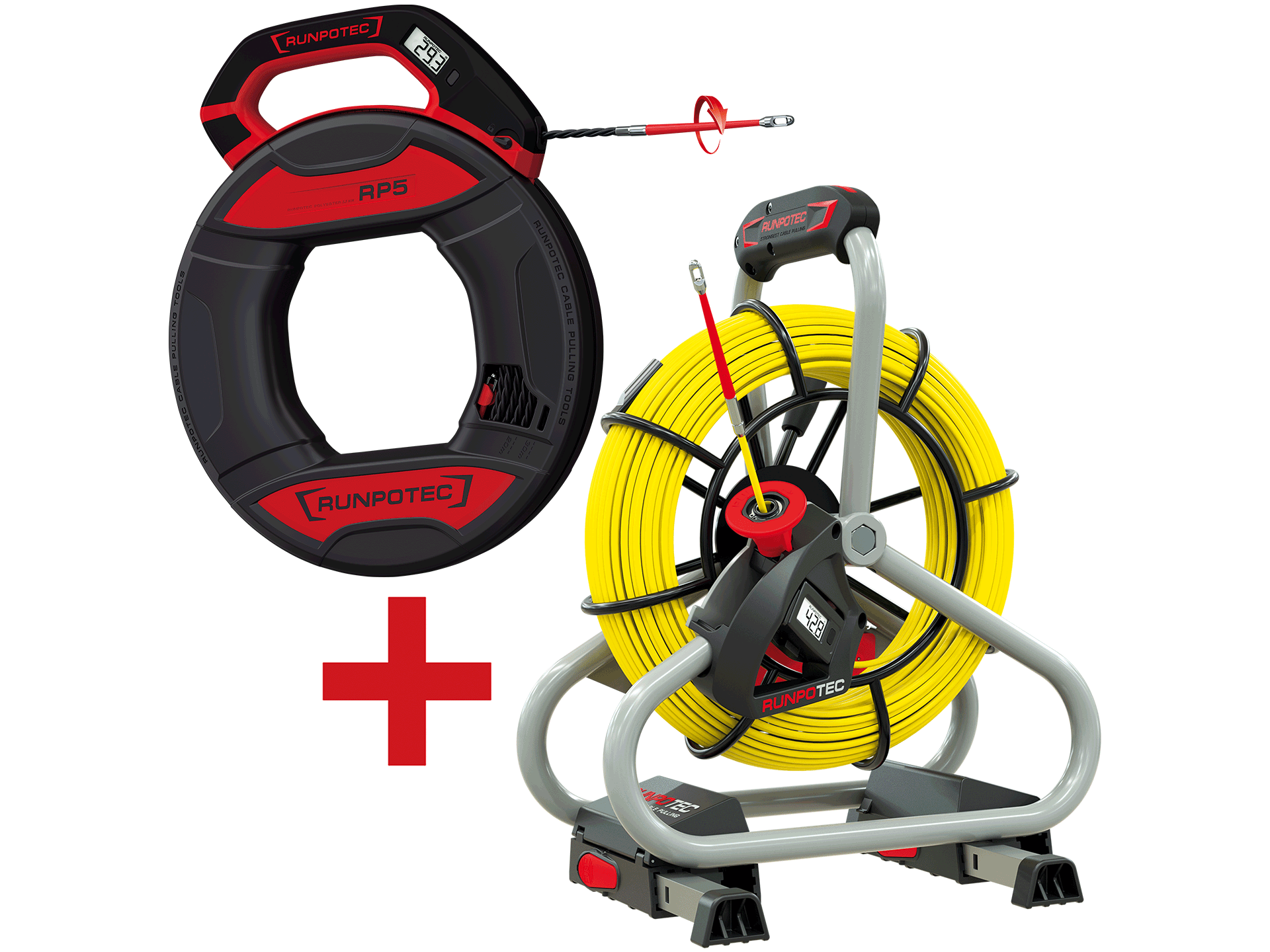

Profi-Set Fiberglass rod Ø 4,5 mm - 60 m/196,85 ft. + RP5 (RUNPO 5) - 30 m/98,43 ft. - cable pulling

Profi-Set Fiberglass rod Ø 4,5 mm - 60 m/196,85 ft. + RP5 (RUNPO 5) - 30 m/98,43 ft. - cable pulling

454.00 CHFInstead of582.50 CHF

Profi-Set Fiberglass rod Ø 4,5 mm - 60 m/196,85 ft. + RP5 (RUNPO 5) - 30 m/98,43 ft. - cable pulling

454.00 CHFInstead of582.50 CHFThe RP5 (RUNPO 5) is another innovation by RUNPOTEC and a genuine "all-rounder". The patented viewfinder tip, the RUNPOGLIDER with swivel allows even the tightest radii to be overcome, with a total breaking load of an incredible 270 kg in relation to the entire pulling system. The special plastic fish tape with a diameter of 5.3 mm and a triple twist has an even better shearing effect than the 3 mm fiberglass rod; the frictional resistance is only half the normal value due to spot contact. Labour- and time-consuming repair work is no longer necessary, as this cable pulling system is virtually breakage-free. The RUNPO5 can be stowed in a very practical box in lengths of 20 m and 30 m. The 40 m RUNPO5 strap cannot be stored in the box. Professional set fiberglass rod (duct rodders) Ø 4.5 mm 60 Meter - RUNPOTEC RTG Ø 6 mm thread with robust steel reel Ø 330 mm (CDP/powder coated)with new double run-out system (automatic run-out brake and quick run-out), additional parking brake, extendable feet and storage compartment for accessories. Fiberglass rod breaking load 1300 kg, total breaking load 220 kg. Optimal field of application: for pipe dimensions: RP5 (RUNPO 5): 16 mm - 40 mm. Fiberglass rod Ø 4,5 mm: for pipe diameters 30 mm - 80 mm.
RP5 (RUN - 30 m/98,43 ft. + RUNPOFIX set of 4 with hook - Profi cable pulling system + cable pulling

RP5 (RUN - 30 m/98,43 ft. + RUNPOFIX set of 4 with hook - Profi cable pulling system + cable pulling

189.90 CHF

RP5 (RUN - 30 m/98,43 ft. + RUNPOFIX set of 4 with hook - Profi cable pulling system + cable pulling

189.90 CHFRP5 (RUNPO 5) / 30m: Special reinforced polyester rod triple twisted Ø 5,3 mm in box, with pressed terminals-starting and ending flexible runpoglider with swivel for maximum bending and gliding behaviour. Recommended tube diameter 16-40 mm, bending radius 20 mm and tension loads of 270 kg. RUNPOFIX - Cable pulling loop with protective cap and hook. Flexible loop made from stainless steel Ø 1.5 mm. The cable can easily be attached to the loop. The protective cap protects the plug from damage and can be pulled through the pipe without hanging loose. The hook enables the RUNPOFIX cable pull-in loop to be fi xed to all the eyelets on the RUMPOGLEITER products. (RP5 (RUNPO 5), RUNPO 1) Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x RUNPO 5 in plastic box, Length: 30m, incl. 2 x RUNPOGLIDER with swivel (pressed on both sides), RUNPOFIX set of 4 with hook: 1 x protective cap outer Ø 14 mm, 1 x protectivce cap outer Ø 17 mm, 1 x protective cap outer Ø 23 mm, 1 x protective cap outer Ø 30 mm
RP5 (Runpo 5) avec compteur digital - 30 m + boucle de tirage avec crochet, capuchon - Lot de 4.

RP5 (Runpo 5) avec compteur digital - 30 m + boucle de tirage avec crochet, capuchon - Lot de 4.

245.50 CHF

RP5 (Runpo 5) avec compteur digital - 30 m + boucle de tirage avec crochet, capuchon - Lot de 4.

245.50 CHFThe RP5 - RUNPOTEC Polyester Ø 5.5 mm is a cable pulling tool including a digital meter counter (for determining the length of pipes/cables or for creating cable lists). The triple-twisted special plastic tape Ø 5.5 mm has an even better thrust effect than the glass fibre rod Ø 3 mm and the frictional resistance is only half as great due to its point contact. The patented RG7 guide tip with twist compensation Ø 5.5 mm (pressed at the beginning and end of the tape) enables the tightest radii to be overcome (bending radius 15 mm). The RP5 RUNPOTEC polyester Ø 5.5 mm is stored in a robust storage box with an ergonomic carrying handle that is suitable for use on construction sites. This is equipped with the new reverse feed protection (stops only the RG7 guide tip), which prevents the cable pulling tape from slipping back unintentionally. The unit of measurement on the metre counter can be changed from metric (m) to imperial (ft). The total breaking load of an incredible 270 kg refers to the entire pulling system. Labour-intensive and time-consuming repair work is no longer necessary, as this cable pulling system is virtually unbreakable. The RP5 is available in lengths of 20 m and 30 m. The RP5 replacement tape 40 m cannot be stored in the box. Optimal application: for pipe inner diameters of 9 - 32 mm. + Cable pulling loop with protective cap and hook. Flexible loop made of stainless steel with a diameter of 1.5 mm. Easy attachment of cables to the loop. The protective cap allows cables with plugs to be pulled through pipes or other situations. The hook allows the cable pulling loops to be attached to all products with RG ¬RUNPOGLEITER (guide tip) (RP5, RP1, etc.). Also ideal for attaching or pulling several cables together. Optimal application: From 14 mm inner diameter and non-guided cables Scope of supply: 1 x RP5 cable pulling tool Ø 5,5 mm with digital meter counter in a plastic box, length: 30 m, including 2 x RG7 RUNPOGLEITER with swivel (pressed on both sides), Cable pulling loop with hook set of 4: 1 x protective cap outer Ø 14 mm, 1 x protective cap outer Ø 17 mm, 1 x protective cap outer Ø 23 mm, 1 x protective cap outer Ø 30 mm
RP5 (Runpo 5) with digital meter counter - 30 m + XB 300 Cable Roller + Multifunctional Mandrel +

RP5 (Runpo 5) with digital meter counter - 30 m + XB 300 Cable Roller + Multifunctional Mandrel +

395.90 CHF

RP5 (Runpo 5) with digital meter counter - 30 m + XB 300 Cable Roller + Multifunctional Mandrel +

395.90 CHFThe multifunction mandrel has been specially developed for XB 300, XB 500 and XB 500 T cable rolling systems. Loose cable bundles can also be rolled by attaching them to the stainless-steel center mandrel and then folding out the 4 side brackets. The telescopic center mandrel measures 72 mm in diameter. It is therefore also ideal for rolling a thinner cable bundle with a small inner diameter or individual wires. The normal height of the multifunction mandrel is 196 mm, which can be extended up to max. 294 mm via the telescopic mechanism. This means high cable bundles or corresponding tube bundles can also be rolled. When the 4 side brackets are unfolded, there is a total contact surface of 430 mm in diameter. Ideally, this should correspond to the respective cable or tube bundle. A designated opening allows the unit to be combined with the RUNPOSTICKS. Optimum area of application: : XB 300: Rolling of (damaged) drums up to 300 kg as well as loose cable bundles or individual wires up to a max. height of 294 mm and a max. diameter of 430 mm, RP5: for pipe dimension 16 mm - 40 mm Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com. Scope of supply: 1 x XB 300, 1 x Multifunction mandrel, 1 x RP5 with digital meter counter - 30 m, 1 x RUNPOTEC system case
